Product Detail

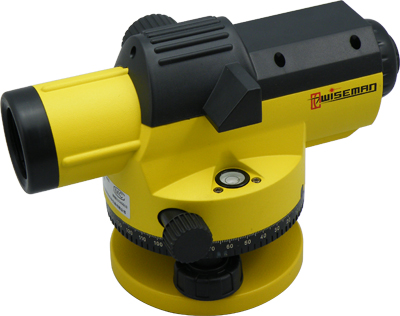

AL8
Share to:
AL8
Type: Magnetic Compensator
Material: Metal Body, Plastic Cover
Color: Optional
Brand: WISEMAN
Model: AL8-32
Image: Erect
Objective Aperture: 38MM
Field Of View: 1°20′
Minimum Focusing Distance: 1M
Stadia Ratio: 100
Setting Accuracy: 0.5”
Compensating Range: ±15′
1KM Double Run Leveling: ±2.5MM
Circular Level Sensitivity: 8′/2MM
Horizontal Circle Graduating: 1° or 1gon
Net Weight: 1.4KG
